What is Prepainted Steel Coil? A Comprehensive Guide
Prepainted steel coil is a highly versatile and widely used construction and manufacturing material known for its durability, aesthetic appeal, and efficiency. It is essentially steel that has been coated with a layer of paint before being formed into end products. This pre-painting process gives it many advantages over traditional steel, especially in applications that require enhanced weather resistance and visual design.
In this article, we’ll explore what prepainted steel coil is, its manufacturing process, common uses, and why it’s become a top choice in modern industry.

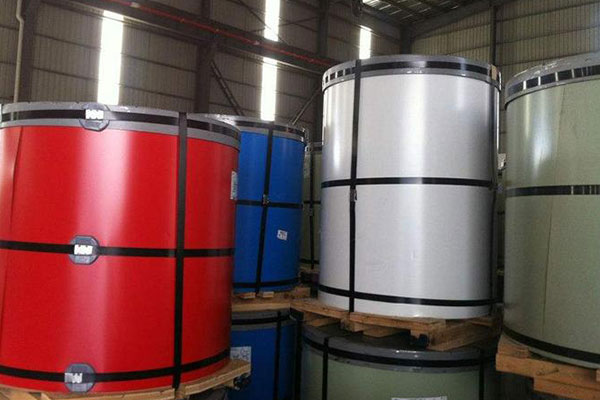

What is Prepainted Steel Coil?
Prepainted steel coil (also known as color-coated steel coil) is a metal product made by applying a protective and decorative paint coating to galvanized steel or galvalume steel in a continuous process. The result is a ready-to-use steel product that offers protection against corrosion and a wide range of color and texture options.
The coil is processed through a continuous coil coating line, where it is cleaned, pre-treated, primed, and then coated with one or more layers of paint. The result is a ready-to-use, durable, and aesthetically appealing material.
How is Prepainted Steel Coil Manufactured?
The production of prepainted steel coil involves several key steps:
1. Base Metal Selection
Common base metals include cold rolled steel (CR), galvanized steel (GI), and galvalume steel (GL).
2. Cleaning and Pre-treatment
The coil is thoroughly cleaned to remove oils, dirt, and residues. A chemical conversion coating is then applied to improve paint adhesion and corrosion resistance.
3. Priming
A primer is applied to both sides of the coil to enhance the bonding strength of the topcoat and extend durability.
4. Top Coating
A decorative and protective topcoat is applied. Common coatings include polyester (PE), silicon modified polyester (SMP), polyurethane (PU), and polyvinylidene fluoride (PVDF).
5. Curing and Cooling
The painted steel is passed through ovens to cure the coating and then cooled before recoiling.

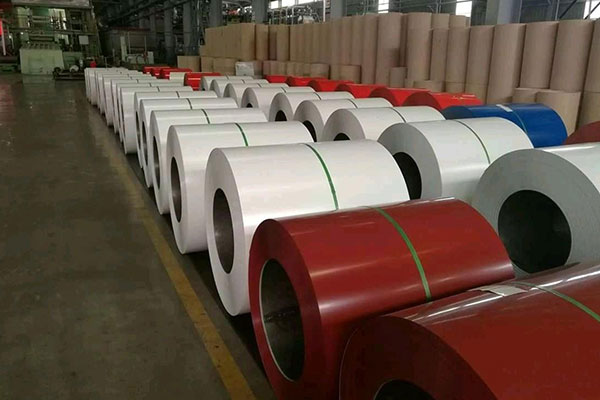

Key Benefits of Prepainted Steel Coil
- Corrosion Resistance: Enhanced protection from rust and corrosion due to high-quality coating systems.
- Aesthetic Appeal: Available in a wide variety of colors, patterns, and surface finishes.
- Cost-Effective: Reduces the need for post-painting and maintenance.
- Environmentally Friendly: Produces less waste compared to post-painted materials.
- High Performance: Excellent mechanical properties, UV resistance, and long service life.
Common Applications of Prepainted Steel Coil
Prepainted steel coil is used in many sectors, including:
1. Construction
- Roofing sheets
- Wall cladding
- Sandwich panels
- Garage doors
- Gutters and downpipes
2. Home Appliances
- Refrigerator panels
- Washing machine bodies
- Microwave ovens
- Air conditioner casings
3. Automotive
- Interior panels
- Trims and dashboards
4. Packaging
- Beverage cans
- Food containers
Types of Coatings for Prepainted Steel Coils
Different applications require different coating types:
- PE (Polyester): Cost-effective and flexible, suitable for general applications.
- SMP (Silicone Modified Polyester): Improved weather resistance, often used in roofing.
- PVDF (Polyvinylidene Fluoride): Excellent durability, color retention, and chemical resistance.
- PU (Polyurethane): Great for environments needing both toughness and beauty.
FAQs
Galvanized steel is coated with zinc to prevent rust, while prepainted steel adds a layer of paint on top for additional protection and color.
Yes. Like other steel products, prepainted steel is 100% recyclable.
Yes, especially if coated with PVDF or other high-performance coatings designed for saltwater resistance.
Conclusion
Prepainted steel coil offers a smart and efficient solution for manufacturers and builders looking for durability, aesthetics, and performance. Its wide variety of colors, coatings, and base materials makes it suitable for countless applications across different industries.
