Nonwoven Geotextile

Features:

1. High water permeability for efficient drainage

2. Good puncture and abrasion resistance

3. Long-term durability in harsh soil conditions

4. Easy to cut, shape, and install



  • Product Details
  • Packaging and Shipping

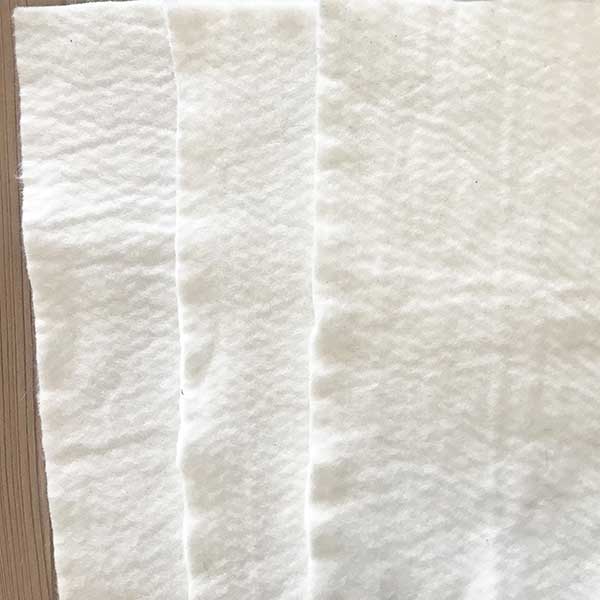

Nonwoven geotextile is a permeable synthetic fabric made from polypropylene or polyester fibers that are mechanically bonded (needle-punched) or thermally bonded.

Unlike woven geotextiles, nonwoven fabrics have a random fiber orientation, giving them excellent filtration, drainage, and separation properties. They are widely used in civil engineering, road construction, landscaping, and environmental projects.

Specifications:

Performance/Model135150200250300350400450500600
Mass deviation per unit area%-6.0 -6.0 -6.0 -5.0 -5.0 -5.0 -5.0 -5.0 -4.0 -4.0
Thickness≥mm1.00 1.2 1.6 1.9 2.2 2.5 2.8 3.1 3.4 4.2
Amplitude Deviation%-0.5
Breaking strength≥kn/m7.00 7.5 10.5 12.5 15.0 17.5 20.5 22.5 25.0 30.0
Elongation at break%40-80
CBR bursting strength ≥kn/m1.21.4 1.8 2.2 2.6 3.0 3.5 4.0 4.7 5.5
Equivalent aperture 090 (095)0.07-0.2
Vertical permeability cm/sK×(10-4-10-3),K=1.0-9.9
Tear strength≥kn0.20.21 0.28 0.35 0.42 0.49 0.56 0.63 0.70 0.82

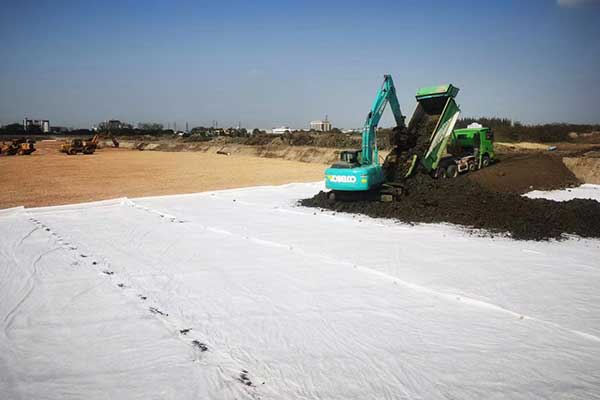

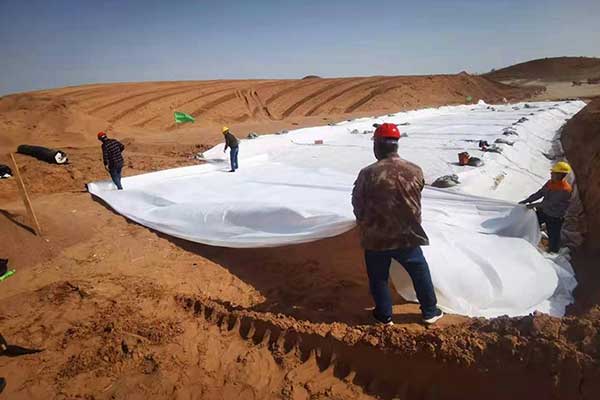

Applications:

  • Drainage systems and French drains
  • Road and railway subgrade separation
  • Erosion control and slope protection
  • Landfill leachate collection systems
  • Retaining wall and embankment drainage
  • Coastal and riverbank stabilization

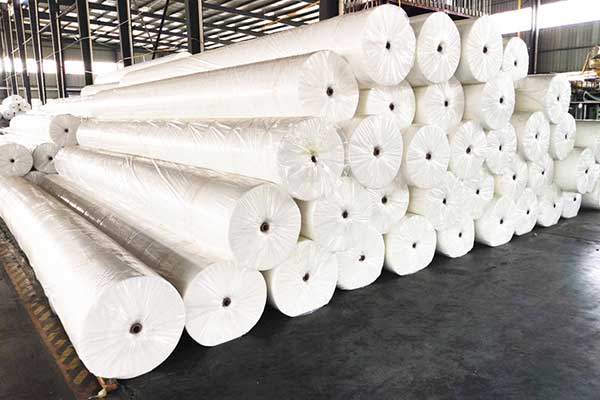

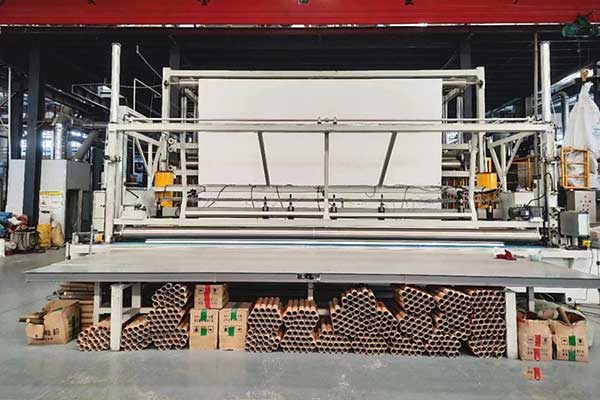

Factory Environment and Inventory

Shelter is a professional nonwoven geotextile manufacturer and supplier in China, offering custom sizes, GSM weights, and roll lengths to meet your project requirements.

Contact Us for a Free Quote

Fill The Form Below, and our sales representatives will be in touch with you shortly.

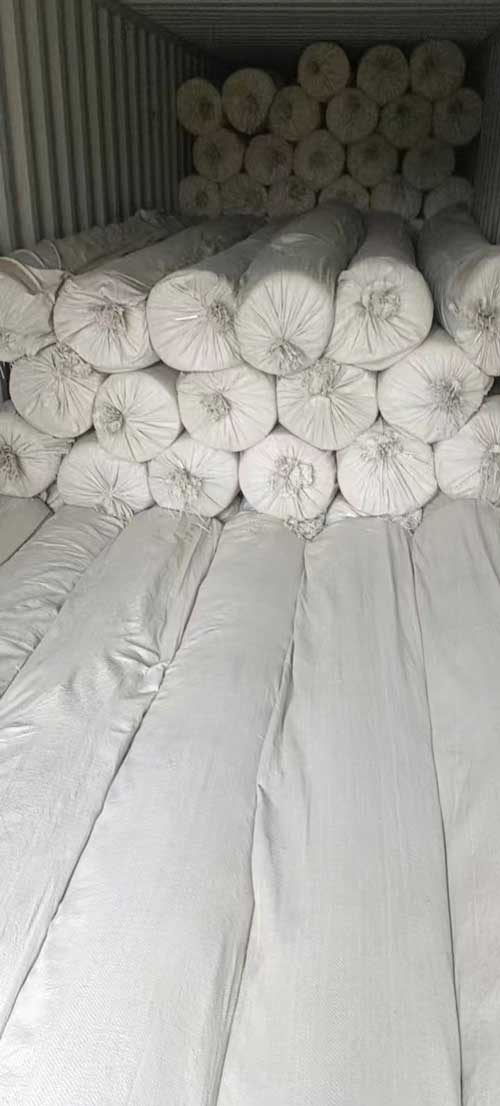

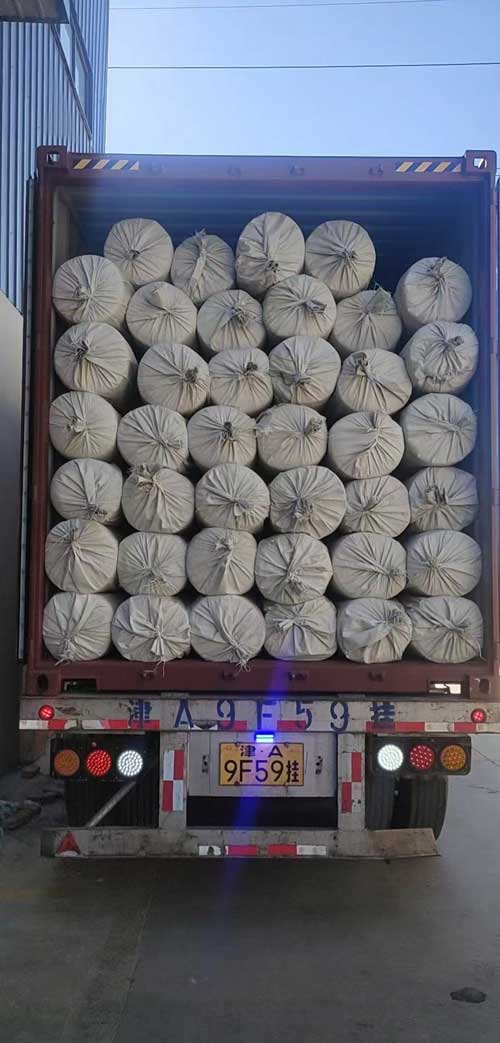

    Packaging and Shipping
